Japan JIS C8303 Plug To IEC 60320 C7 Connector, 2-Pin AC Power Cord

Voltage
125V
AMP
7A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Plug P/No
JIS C8303 / PHP-209
Plug AMP/Voltage
15A 125V
Connector p/No
JIS C8303 / PHS-204
Connector AMP/Voltage
7A 125V
Certificate
Inquiry cart

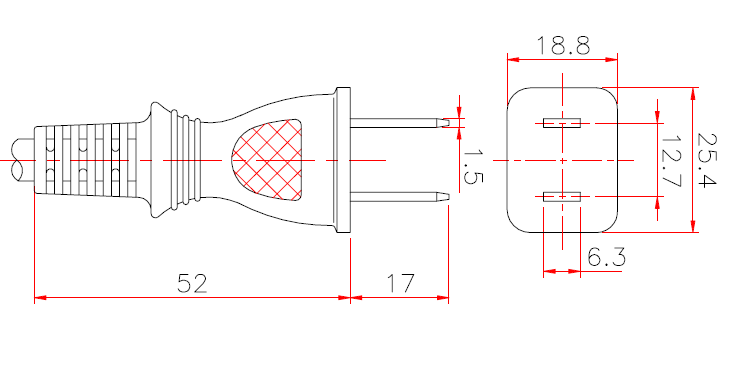

Drawing
Specifications
Wire Type VFF/HVFF              2X0.75mm2
VCTFK/HVCTFK    2X0.75mm2
Referred Standard JIS C8303
RoHS     Compliance Yes
REACH   Compliance  Yes
  • The Japan JIS C8303 (Male) is a 2 pins ungrounded plug rated up to 125V and 15A. The plug looks the same as the NEMA 1-15P but the dimensional tolerances are more strict for the Japan plug. This is the reason why American plug may not fit into an outlet for Japan. We manufactured plugs with PSE approvals by using typical cordage (VCTF/VCTFK/NNFF jacket material). VCTF has a round shape and is rated to 60C. HVCTF has a round shape and is rated to 75C. VCTFK has an oval shape and is rated 60C. Available with IEC60320 C7 and open-ended variations.
  • The IEC 60320 C7 (Female) is a 2 pins ungrounded connector rated up to 125V and 7A in Japan. The C7 mates with a C8 inlet and is commonly used for laptop power supplies, video game consoles, televisions, and other double-insulated small appliances. This connector is sometimes referred to as a (Figure-8) or (Shotgun) connector due to its shape. Although it is not documented in the IEC 60320 standard. The C7P (C7 Polarized) has one square side and one circular side so the connector only mates with the inlet using the correct pin configuration.
