Japan JIS C8303 (NEMA 5-15P) Left Angle Plug To C13 Connector, 3-Pin AC Power Cord

Voltage
125V
AMP
15A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Plug P/No
JIS C8303 / PHP-301
Plug AMP/Voltage
15A 125V
Connector p/No
IEC 60320 C13 / PHS-301RL
Connector AMP/Voltage
15A 125V
Certificate
Inquiry cart

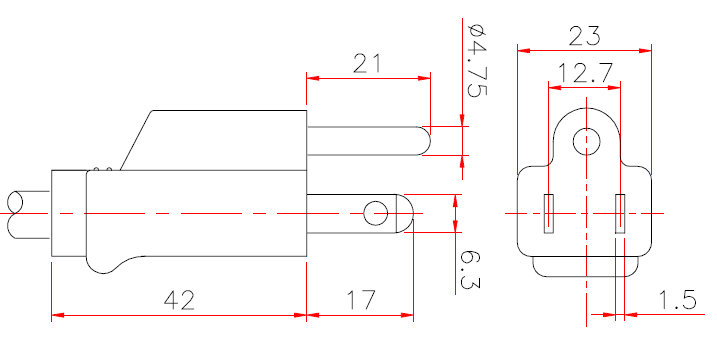

Drawing

Specifications
Wire Type VCTF/HVCTF    3G0.75mm2
Referred Standard JIS C8303
RoHS     Compliance Yes
REACH   Compliance  Yes
  • The Japan 3 pin plug JIS C8303 (Male, same as USA NEMA 5-15P plug) is a 3 pins grounded plug rated up to 125V and 15A, featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin. The NEMA 5-15P is standard household plug used for connecting small appliances such as Televisions, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a NEMA 5-20R T-Slot outlet, which is commonly found in new home installations.
  • The IEC 60320 C13 (Female) is a 3 pins grounded connector rated up to 125V and 15A. The C13 mates with a C14 inlet and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C13 is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13. The right angle connector style is for installing in tight spaces where the power supply or opening is towards the right.
