Holland CEE 7/16 Plug To IEC 60320 C7 Right Angle Connector, 2-Pin AC Power Cord

Voltage
250V
AMP
2.5A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Plug P/No
CEE 7/16 / PHP-205
Plug AMP/Voltage
2.5A 250V
Connector p/No
IEC 60320 C7 / PHS-204R
Connector AMP/Voltage
2.5A 250V
Certificate
Inquiry cart
Drawing
Specifications
Available with Cords H03VVH2-F     2X0.75mm2
H05VVH2-F     2X0.75mm2
Standard IEC 60799
RoHS Compliance Yes
REACH Compliance Yes

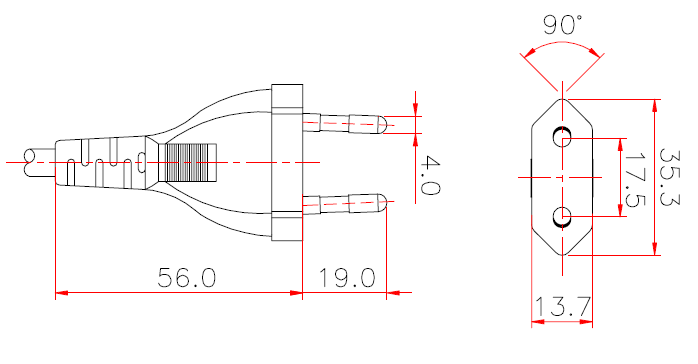

  • The CEE 7/16 (Male) is a 2 pins flat plugs rated up to 250V and 2.5A. it is also defined by Cenelec standard EN 50075 (Flat non-rewirable two-pole plugs, 2.5A 250V, with cord, for the connection of class II-equipment for household and similar purposes) which has national equivalents in most European countries, as described in IEC 60083. The Europlug is not rewirable and must be supplied with a flexible cord. Because it is unpolarised, it can be inserted in either direction into a socket, so line and neutral are connected arbitrarily.

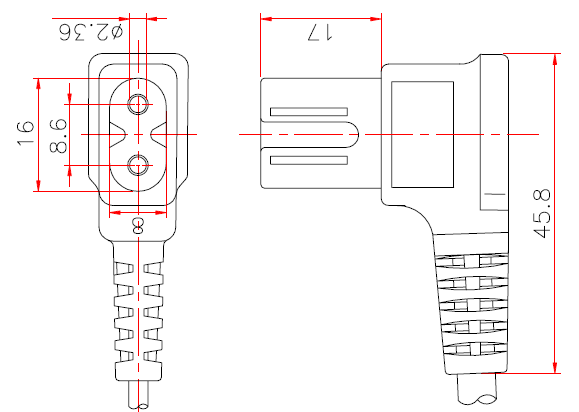

  • The IEC 60320 C7 (Female) is a 2 pins ungrounded connector rated up to 250V and 2.5A. The C7 mates with a C8 inlet and is commonly used for laptop power supplies, video game consoles, televisions, and other double-insulated small appliances. This connector is sometimes referred to as a (Figure-8) or (Shotgun) connector due to it's shape. The C7P has one square side and one circular side so the connector only mates with the inlet using the correct pin configuration.
