Holland CEE 7/7 Down Angle Plug To IEC 60320 C5 Connector, 2-Pin AC Power Cord

Voltage
250V
AMP
2.5A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Plug P/No
CEE 7/7 / PHP-206
Plug AMP/Voltage
16A 250V
Connector p/No
IEC 60320 C5 / PHS-305
Connector AMP/Voltage
2.5A 250V
Certificate
Inquiry cart

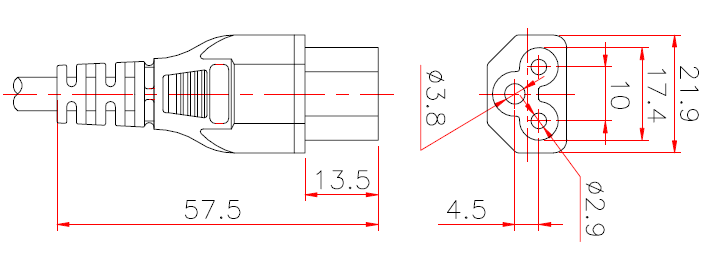

Drawing
Specifications
Available with Cords H03VV-F     3G0.75mm2
H05VV-F     3G0.75~1.0mm2
Standard IEC 60799
RoHS Compliance Yes
REACH Compliance Yes
  • The European Schuko CEE 7/7 Down Angle plug (Male) is a 2 pins grounded plug rated up to 250V and 16A. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground. The CEE7/7 Schuko is a hybrid plug designed to fit into both type C and F Schuko receptacle.The down angled plug is designed for tight installations in which a straight connector.
  • The IEC 60320 C5 (Female) is a 3 pins grounded connector rated up to 250V and 2.5A. The C5 mates with a C6 inlet and is commonly used for laptop power supplies, projectors, and televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a (Mickey Mouse) connector due to the shape of the connector.
