USA NEMA 1-15P Plug To IEC 60320 C7 Connector, 2-Pin AC Power Cord

Voltage
125V
AMP
7A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Plug P/No

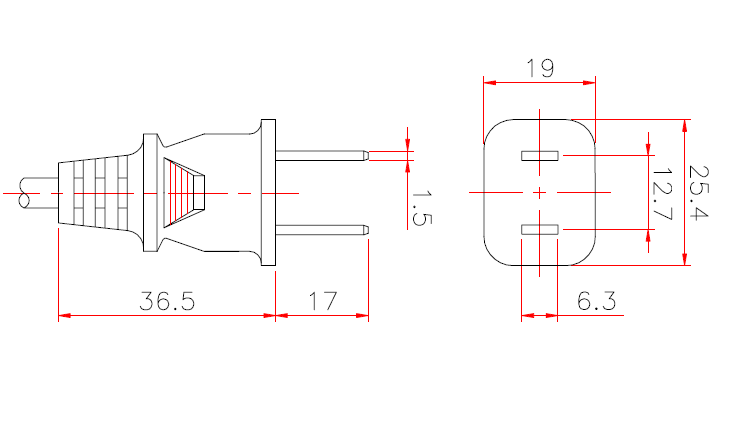

NEMA 1-15P / PHP-201
Plug AMP/Voltage
15A 125V
Connector p/No

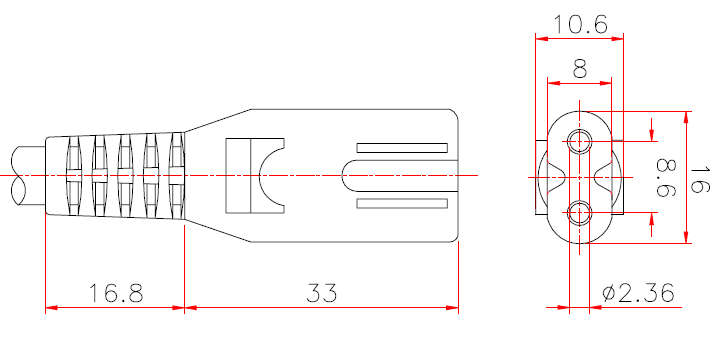

IEC 60320 C7 / PHS-205A
Connector AMP/Voltage
7A 125V
Certificate
Inquiry cart
Drawing
Specifications
Available with Cords SPT-1       AWG 18/2C
SPT-2       AWG 18/2C
NISPT-1   AWG 18/2C
NISPT-2   AWG 18/2C
Standard UL 817 , NEMA 1-15P
RoHS  Compliance Yes
REACH Compliance Yes
  • The NEMA 1-15P (Male) is a 2 pins ungrounded plug rated up to 125V and 15A in America. NEMA 1-15P is compatible with the NEMA 5-15R outlet. This plug can be (polarized) or (non-polarized), a polarized 1-15P will have unequal blades to prevent harm to devices attached.
  • The IEC 60320 C7 (Female) is a 2 pins ungrounded connector rated up to 125V and 7A in America. The C7 mates with a C8 inlet and is commonly used for laptop power supplies, video game consoles, televisions, and other double-insulated small appliances. This connector is sometimes referred to as a (Figure-8) or (Shotgun) connector due to it's shape. The C7P has one square side and one circular side so the connector only mates with the inlet using the correct pin configuration.
