USA IEC 60320 C14 Plug To C13 Connector, 3-Pin AC Power Cord

Voltage
125V
AMP
10A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Plug P/No
IEC 60320 C14 / PHP-310
Plug AMP/Voltage
10A 125V
Connector p/No
IEC 60320 C13 / PHS-301
Connector AMP/Voltage
10A 125V
Certificate
Inquiry cart

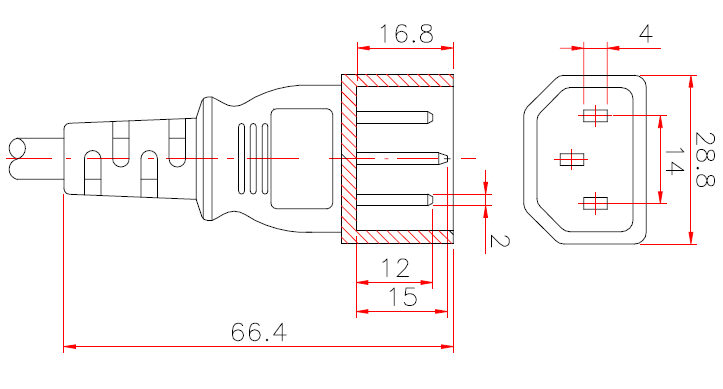

Drawing
Specifications
Available with Cords SVT     AWG 18/3C
SJT      AWG 18/3C
SJTO   AWG 18/3C
SJTW   AWG 18/3C
Standard UL 817
RoHS Compliance Yes
REACH  Compliace Yes
  • The IEC 60320 C14 (Male) is a 3 pins grounded plug rated up to 125V and 10A. The C14 mates with a C13 outlet and typically found on Data Center/IT specific PDUs (Power Distribution Unit). The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(O/W), 16awg SJT(O/W) or 14awg SJT(O/W). The types of cordages used will change the rating of the overall cord set. (SVT cordage is thinner than the standard SJT jacket typically found on IEC power cables, meaning it is highly efficient in densely packed server rack.)
  • The IEC 60320 C13 (Female) is a 3 pins grounded connector rated up to 125V and 10A. The C13 mates with a C14 inlet and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C13 is the standard connector used to power most desktop computers.
